working with Github's Graphql api

After working with the github rest api and experiencing some of it's limitations it's time to pick things up a bit and dive into their Graphql api

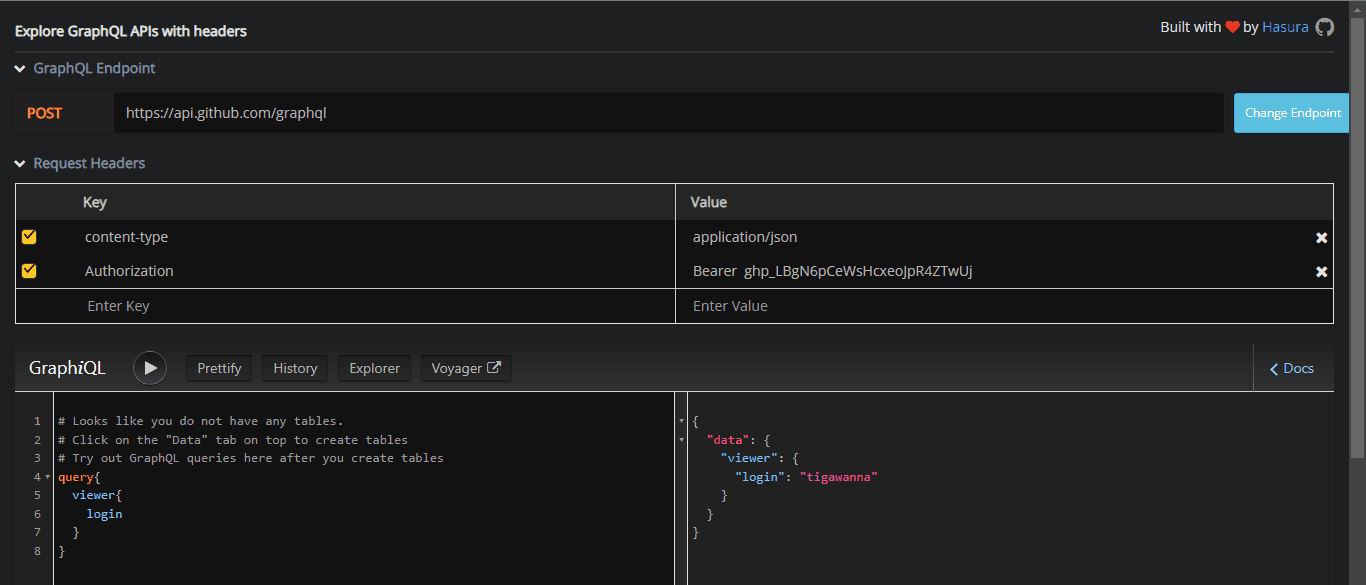

as Usual first things first we set up a testing environment and github provides their own explorer which will setup the authentication headers for you under the hood , but if you prefer to use another gql explorer , just set it up like below Replace ghp_LBgN6pCeWsHcxeoJpR4ZTwUj with your personal access token

I have another article i made about react-query tips and tricks which might help explain that part . because i want to focus on the actual GraphQl queries in this one i'll mostly highlight the queries i used in the project and not go into details about the react part

final project live preview

let go

before we start we'll define a graphql Fragment that defines a User, this will come in handy because we'll be using it when querying the viewer ,user, follower , and following for uniformity so that if we need to add or remove a field we just do it once in the fragment and all the items defined by it change along with it.

typescript

1import gql from "graphql-tag";
2
3/// user fragments
4export const OneUserFrag = gql`
5  fragment OneUser on User {
6    id
7    name
8    login
9    email
10    bio
11    avatarUrl
12    company
13    twitterUsername
14    createdAt
15    isFollowingViewer
16    viewerIsFollowing
17    isViewer
18    location
19    url
20    followers(first: 1) {
21      totalCount
22      nodes {
23        id
24      }
25    }
26    following(first: 1) {
27      totalCount
28      nodes {
29        id
30      }
31    }
32
33  repositories(first:1){
34   totalCount
35    nodes{
36      id
37    }
38    }
39  }
40`;

>If you remember the REST api was lacking a few fields in the equivalent query isFollowingViewer , viewerIsFollowing , isViewer which will help us avoid having to run other sub queries to check the follow status on every follower/following item

viewer

This query returns the currently logged in User , and I am using the personal access token to authenticate users since it's the simplest to implement.

typescript

1//get currently logged in user
2export const GETVIEWER = gql`
3  query getViewer {
4    viewer {
5      ...OneUser
6    }
7  }
8  ${OneUserFrag}
9`;

you'll notice that We're only fetching one follower , following , repository

javascript

1      following(first: 1) {
2        totalCount
3        nodes {
4          id
5        }
6      }

and that's because we're only interested in the totalCount field at this point in order to diply it like this with all the counts

paginated fields

This is also because those three field require pagination and take the first ,last , after and before parameters

last and first is number of nodes and from which portion you want them from start of end and before and after are cursors , the api doe's generate cursors for us and can be accessed inside the page info field that's available in every paginated field

javascript

1export const getUserWithFollowers = gql`
2  query getUserFollowers($login: String!, $first: Int, $after: String) {
3    user(login: $login) {
4     followers(first: $first, after: $after) {
5        pageInfo {
6          endCursor
7          hasNextPage
8          hasPreviousPage
9          startCursor
10        }
11        totalCount
12        edges {
13          node {
14      ...OneUser
15          }
16        }
17      }
18    }
19  }
20   ${OneUserFrag}
21`;

in this example to fetch the next values , we'll pass in the endCursor into the after field on the next query

also note the GraphQl types

javascript

1$login: String!, $first: Int, $after: String

where String! is required and cannot be null , but String can be null , which is why the in initial query you can pass in after as null

This is also an example of graphql variables , where

javascript

1  query getUserFollowers($login: String!, $first: Int, $after: String) {}

wiltake in the variables login ,first and after and pass them into the query

javascript

1user(login: $login) {
2followers(first: $first, after: $after) {

and with queries with no variables you'll just write

typescript

1   query getViewer {
2    viewer {}
3    }

i've found it easier to avoid stuffing multiple paginated fields into one query and just break them of into smaller queries to be run by their own component which instead of a giant query to be rendered in one component

for example , once the viewer has been fetched the smaller components nested in the main component will have their own queries one for repositories another for followers and following they will be optionally rendered in a tab like way where by default it'll load the repository tab and the others will be shown if the user explicitly clicks on them which is when they'll run their sub query

User

similar to the viewer query but this will take one login (username) as a parameter and return the OneUserFragMent , useful when you want to navigate to another User obtained either from the follower list or Search results

javascript

1export const GETONEUSER = gql`
2  query getUser($login: String!) {
3    user(login: $login) {
4      ...OneUser
5      }
6   }
7   ${OneUserFrag}

Search

we'll also want the ability to search for random github user's by their username or password

javascript

1export const USERSEARCH = gql `
2
3query userSearch($query:String!,$first:Int,$type:SearchType!){
4  search(query:$query,first:$first,type:$type){
5    repositoryCount
6    discussionCount
7    userCount
8    codeCount
9    issueCount
10    wikiCount
11
12  edges{
13    node{
14  ... on User {
15    login
16    name
17    email
18    avatarUrl
19    url
20    }
21  }
22  }
23 }
24}
25
26`

the syntax below is better explained here but i short it lets us access items of a specific fragment since this query can return fragments of different types User , Repository , Code, Issue....

typescript

1 ... on User {

which allows you to write highly customizable queries like this

typescript

1query userSearch($query:String!,$first:Int,$type:SearchType!){
2  search(query:$query,first:$first,type:$type){
3    repositoryCount
4    discussionCount
5    userCount
6    codeCount
7    issueCount
8    wikiCount
9
10  edges{
11    node{
12  ... on User {
13    login
14    name
15    email
16    avatarUrl
17    url
18    }
19     ... on Repository{
20      name
21      url
22      }
23      ... on  Issue{
24        id
25        body
26      }
27  }
28  }
29 }
30}

follower

the follower query is basically this query

typescript

1//get currently logged in user
2export const GETVIEWER = gql`
3  query getViewer {
4    viewer {
5      ...OneUser
6    }
7  }
8  ${OneUserFrag}
9`;

javascript

1export const GETONEUSER = gql`
2  query getUser($login: String!) {
3    user(login: $login) {
4      ...OneUser
5      }
6   }
7   ${OneUserFrag}

but with the OneUser fragment being requested inside the the follower field

typescript

1export const getUserWithFollowers = gql`
2  query getUserFollowers($login: String!, $first: Int, $after: String) {
3    user(login: $login) {
4     followers(first: $first, after: $after) {
5        pageInfo {
6          endCursor
7          hasNextPage
8          hasPreviousPage
9          startCursor
10        }
11        totalCount
12        edges {
13          node {
14      ...OneUser
15          }
16        }
17      }
18    }
19  }
20   ${OneUserFrag}
21`;

the following field is also very similar

typescript

1export const getUserWithFollowing = gql`
2  query getUserFollowing($login: String!, $first: Int, $after: String) {
3    user(login: $login) {
4    following(first: $first, after: $after) {
5        pageInfo {
6          endCursor
7          hasNextPage
8          hasPreviousPage
9          startCursor
10        }
11        totalCount
12        edges {
13          node {
14       ...OneUser
15          }
16        }
17      }
18    }
19  }
20  ${OneUserFrag}
21`;

Repository

this field has a lot on it and it'll be all about what you want to display in your app in my case i wanted to display something like this

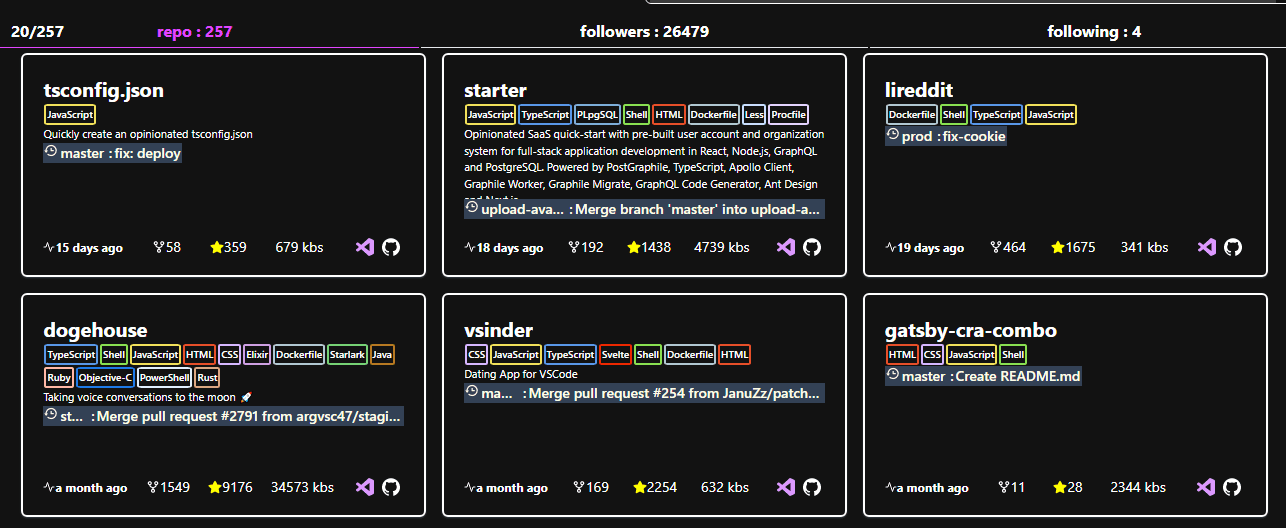

I used ben awad's profile because his repositories actually have stars ,forks and multiple languages which is the brief info i want to see at a glance before i decide to click on it and see more

to achieve this i used this query

typescript

1export const REPOS = gql`
2         query getRepos($name: String!, $first: Int, $after: String) {
3           user(login: $name) {
4             login
5             repositories(
6               after: $after
7               first: $first
8               orderBy: { field: PUSHED_AT, direction: DESC }
9             ) {
10               edges {
11                 node {
12                   id,
13                   name,
14                   description,
15                   pushedAt,
16                   diskUsage,
17                   url,
18                   visibility,
19                   forkCount,
20                   stargazers(first: $first) {
21                   totalCount
22                   },
23                   refs(
24                     refPrefix: "refs/heads/"
25                     orderBy: { direction: DESC, field: TAG_COMMIT_DATE }
26                     first: 2
27                   ) {
28                     edges {
29                       node {
30                         name
31                         id
32                         target {
33                           ... on Commit {
34                             history(first: 1) {
35                               edges {
36                                 node {
37                                   committedDate
38                                   author {
39                                     name
40                                   }
41                                   message
42                                 }
43                               }
44                             }
45                           }
46                         }
47                       }
48                     }
49                   }
50
51                   languages(first: $first) {
52                     edges {
53                       node {
54                         id
55                         color
56                         name
57                       }
58                     }
59                   }
60                 }
61                 cursor
62               }
63               totalCount
64               pageInfo {
65                 startCursor
66                 endCursor
67                 hasNextPage
68                 hasPreviousPage
69               }
70             }
71           }
72         }
73       `;
74

which is one moderately chonky query but returns everything i need in one query,

typescript

1     refs(
2                     refPrefix: "refs/heads/"
3                     orderBy: { direction: DESC, field: TAG_COMMIT_DATE }
4                     first: 2
5                   ) {
6                     edges {
7                       node {
8                         name
9                         id
10                         target {
11                           ... on Commit {
12                             history(first: 1) {
13                               edges {
14                                 node {
15                                   committedDate
16                                   author {
17                                     name
18                                   }
19                                   message
20                                 }
21                               }
22                             }
23                           }
24                         }
25                       }
26                     }
27                   }

in this bit am requesting for the 2 most recent commits and the branch on which it was made , the fact that this is possible in one query blows my mind which is another reason i really like graphql

but to top it all off am planning to implement a bigger query which i abandoned after realising it would be a pagination nightmare and would be better off being split up into smaller queries and each query being assigned it's child component which an be optionally rendered on user request but here it is anyway

typescript

1const FULLREPO = gql`
2# github graphql query to get more details
3  query getRepoDetails(
4    $repoowner: String!,
5    $reponame: String!,
6    $first: Int,
7    $after: String,
8  ) {
9    repository(owner: $repoowner, name: $reponame) {
10    nameWithOwner,
11
12      # get the repo collaborators
13
14      collaborators(first: $first, after: $after) {
15        edges {
16          node {
17            avatarUrl,
18            email,
19            name,
20            bio,
21            company
22          },
23        },
24        pageInfo {
25          endCursor,
26          hasNextPage,
27          hasPreviousPage,
28          startCursor
29        },
30        totalCount
31      }
32      # end of collaborators
33
34      # gets the repo vulnerabilities
35
36      vulnerabilityAlerts(first: $first, after: $after) {
37        edges {
38          node {
39            createdAt,
40            securityAdvisory {
41              classification,
42              description,
43              vulnerabilities(first: $first, after: $after) {
44                edges {
45                  node {
46                    severity,
47                    package {
48                      name,
49                      ecosystem
50                    }
51                  }
52                },
53                pageInfo {
54                  endCursor
55                  hasNextPage
56                  hasPreviousPage
57                  startCursor
58                },
59                totalCount
60              }
61            }
62          }
63        }
64      },
65      #   end of vulnerabilities block
66
67      #refs: get branches and all the recent commits to it
68
69      refs(
70        refPrefix: "refs/heads/"
71        orderBy: { direction: DESC, field: TAG_COMMIT_DATE }
72        first: $first
73        after: $after
74      ) {
75        edges {
76          node {
77            name
78            id
79            target {
80              ... on Commit {
81                history(first: $first, after: $after) {
82                  edges {
83                    node {
84                      committedDate,
85                      author {
86                        name,
87                        email
88                      },
89                      message,
90                      url,
91                      pushedDate,
92                      authoredDate,
93                      committedDate
94                    }
95                  }
96                }
97              }
98            }
99          }
100        },
101        pageInfo {
102          endCursor,
103          hasNextPage,
104          hasPreviousPage,
105          startCursor,
106        },
107        totalCount
108        nodes {
109          associatedPullRequests(first: $first, after: $after) {
110            pageInfo {
111              endCursor,
112              hasNextPage,
113              hasPreviousPage,
114              startCursor,
115            },
116            totalCount
117          }
118        }
119      }
120
121      # end of refs block
122      # languages
123      languages(first: $first, after: $after) {
124        edges {
125          node {
126            id,
127            color,
128            name
129          }
130        },
131        pageInfo {
132          endCursor,
133          hasNextPage,
134          hasPreviousPage,
135          startCursor
136        },
137        totalCount
138      }
139
140      # end of languages block
141      forkCount
142      #fork block
143      forks(first: $first, after: $after) {
144        edges {
145          node {
146            createdAt,
147            nameWithOwner,
148            description,
149            url,
150            owner {
151              login,
152              url
153            },
154            parent {
155              url,
156              owner {
157                login,
158                url
159              }
160            }
161          }
162        }
163        pageInfo {
164          endCursor,
165          hasNextPage,
166          hasPreviousPage,
167          startCursor,
168        },
169        totalCount
170      }
171      # end of fork block
172
173      # star block
174      stargazers(first: $first, after: $after) {
175        edges {
176          node {
177            login,
178            url
179          }
180        }
181        pageInfo {
182          endCursor,
183          hasNextPage,
184          hasPreviousPage,
185          startCursor
186        }
187        totalCount
188      }
189      #end of star block
190    }
191  }
192`;
193

the query works fine , but only if you don't paginate because then you'll have to add more after variable for every paginated field and also handle the react-query / your gql client of choice

btw , check out example usage of react-query with graphql

final project live preview next js usage react-query tips and tricks github rest api

{% embed https://gist.github.com/tigawanna/32acc9552e02634609184dc14f2076a3 %}

Github's GraphQl API with react-query and NextJs

How to get the Oauth providre access tokens from next auth/authjs

Reasons to Still Use Next.js from a TanStack Start Enjoyer

How to select oauth scopes in next-auth / authjs

Github's GraphQl API with react-query and NextJs

How to get the Oauth providre access tokens from next auth/authjs

Reasons to Still Use Next.js from a TanStack Start Enjoyer

How to select oauth scopes in next-auth / authjs

working with Github's Graphql api

viewer

paginated fields

User

Search

follower

the following field is also very similar

Repository

More posts

How to get the Oauth providre access tokens from next auth/authjs

Reasons to Still Use Next.js from a TanStack Start Enjoyer

How to select oauth scopes in next-auth / authjs

More posts

How to get the Oauth providre access tokens from next auth/authjs

Reasons to Still Use Next.js from a TanStack Start Enjoyer

How to select oauth scopes in next-auth / authjs

working with Github's Graphql api

viewer

paginated fields

User

Search

follower

the following field is also very similar

Repository
