Building my own PostgresGUI with TypeORM+TypeGraphQl class generaion

I recently saw a job opening where they wanted a Nodejs ,TypeORM and GraphQL developer So I decided now would be a good time to brush up on those skills

Throw back to 3 years a go when Ben Awad was the predominant react influencer on YouTube when he dropped this absolute banger of an intermediate full-stack tutorial

But before starting with that I went back to do a Postgres refresher and tried out a freecodecamp video

In the video they ha a sample movies database which I decided to build an app around as practice and expose a GraphQL API of it

Checkout sample database setup part

Before we do anything , we'll walk over how we'll use TypeORM with GraphQL

The idea will be to

Create a GraphQl server with express and apollo-server-express
Using TypeORM as our ORM to talk to the database with and define the schema
Use type-graphql to define the GraphQ schema and resolvers for maximum type safety

The TypeORM + TypeGraphQl definition would be a class with respective annotations

typescript

1import { Entity, PrimaryGeneratedColumn, Column } from "typeorm"
2import { ObjectType, Field, Int, InputType } from 'type-graphql'
3import { registerEnumType } from "type-graphql";
4
5
6enum FilmRatings{
7PG13 = "PG-13",
8    NC17 = "NC-17",
9    R = "R",
10    G = "G",
11    PG = "PG"
12}
13
14
15registerEnumType(FilmRatings, {
16    name: "rating", // Mandatory
17    description: "The film rating", // Optional
18});
19
20@ObjectType()
21@InputType()
22@Entity()
23export class Film {
24    @Field(() => Int)
25    @PrimaryGeneratedColumn()
26    film_id: number;
27
28    @Field(()=>String)
29    @Column({ type: "text" })
30    title: string;
31
32    @Field(() => Int)
33    @Column({ type: "integer" })
34    release_year: number;
35
36    @Field(() => Int)
37    @Column({ type: "smallint" })
38    language_id: number;
39
40    @Field(() => Int)
41    @Column({ type: "smallint" })
42    rental_duration: number;
43
44    @Field(() => Int)
45    @Column({ type: "numeric" })
46    rental_rate: number;
47
48    @Field(() => Int)
49    @Column({ type: "smallint" })
50    length: number;
51
52    @Field(() => Int)
53    @Column({ type: "numeric" })
54    replacement_cost: number;
55
56    @Field(()=>FilmRatings)
57    @Column({ type: "enum",enumName: "rating" })
58    rating: FilmRatings
59
60    @Field(() => String)
61    @Column({ type: "timestamp without time zone" })
62    last_update: Date;
63
64    @Field(() => [String])
65    @Column({ type: "text", array: true })
66    special_features: string[];
67
68    @Field(()=>String)
69    @Column({ type: "text" })
70    fulltext: string;
71
72}
73
74

When you already have an existing database you can use the TypeORM option synchronize: false,

typescript

1import { DataSource } from "typeorm"
2
3export const AppDataSource = new DataSource({
4    type: "postgres",
5    host: "localhost",
6    port: 5432,
7    username: "postgres",
8    password: "postgres",
9    database: "dvdrental",
10    synchronize: false,
11    migrations: ["src/migrations"],
12    entities:["src/entities/*.entity.ts"],
13})

The issue I immediately ran into was how to use the column types database already as to generate TypeORM schemas manually There a was a Postgres query to return a table's column types

sql

1        SELECT table_name,
2    (SELECT string_agg(column_name, ', ')
3    FROM information_schema.columns
4    WHERE table_schema = t.table_schema
5        AND table_name = t.table_name) AS columns,
6    (SELECT string_agg(data_type, ', ')
7    FROM information_schema.columns
8    WHERE table_schema = t.table_schema
9        AND table_name = t.table_name) AS column_types
10    FROM information_schema.tables t
11  WHERE table_schema = 'public'

But it wasn't very clear on Enum types and other types like that for example the film table had rating column that was an Enum type

You could get the Enum values using a distinct select

sql

1SELECT DISTINCT rating FROM film

But this didn't feel scalable so I built a simple Postgres GUI as a challenge to view the columns and their types and feed that info into an LLM to get a schema.

Postbase , Am bad at naming things but in It's basics

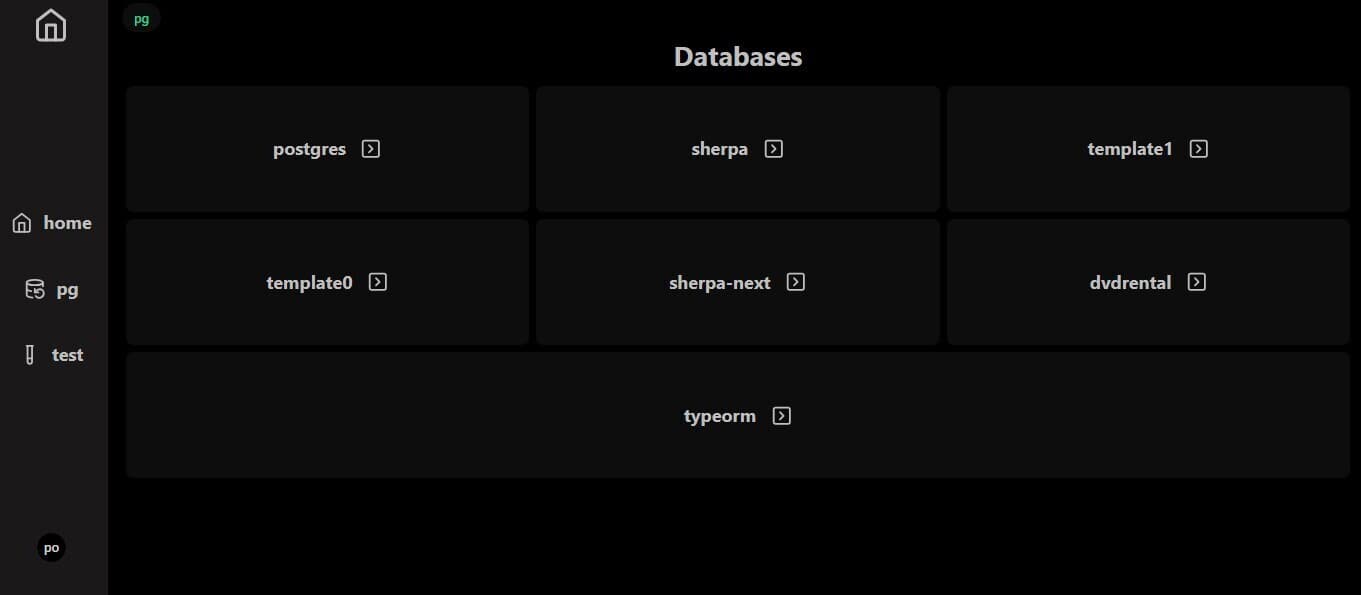

When loaded up the /pg route , This snippet will run and fetch all the databases running on your Postgres server

tsx

1  const query = useSSQ(async (ctx) => {
2    try {
3     const config = safeDestr<DbAuthProps>(ctx.cookie?.pg_cookie);
4      if (!config) {
5        return { result: null, error: "no config" };
6      }
7      const sql = postgresInstance(config);
8      if (!sql) {
9        return { result: null, error: "no config" };
10      }
11
12      if (config.local_or_remote === "remote") {
13        return {
14          result: { redirect: `/pg/${sql.options.database}` },
15          error: null,
16        };
17      }
18      const database = (await sql`SELECT datname FROM pg_database`) as any as [
19        { datname: string },
20      ];
21      const users = (await sql`SELECT * FROM pg_catalog.pg_user`) as any as [
22        { usename: string },
23      ];
24
25      return { result: { database, users }, error: null };
26    } catch (error: any) {
27      console.log(" === error == ", error.message);
28      return { result: null, error };
29    }
30  });
31

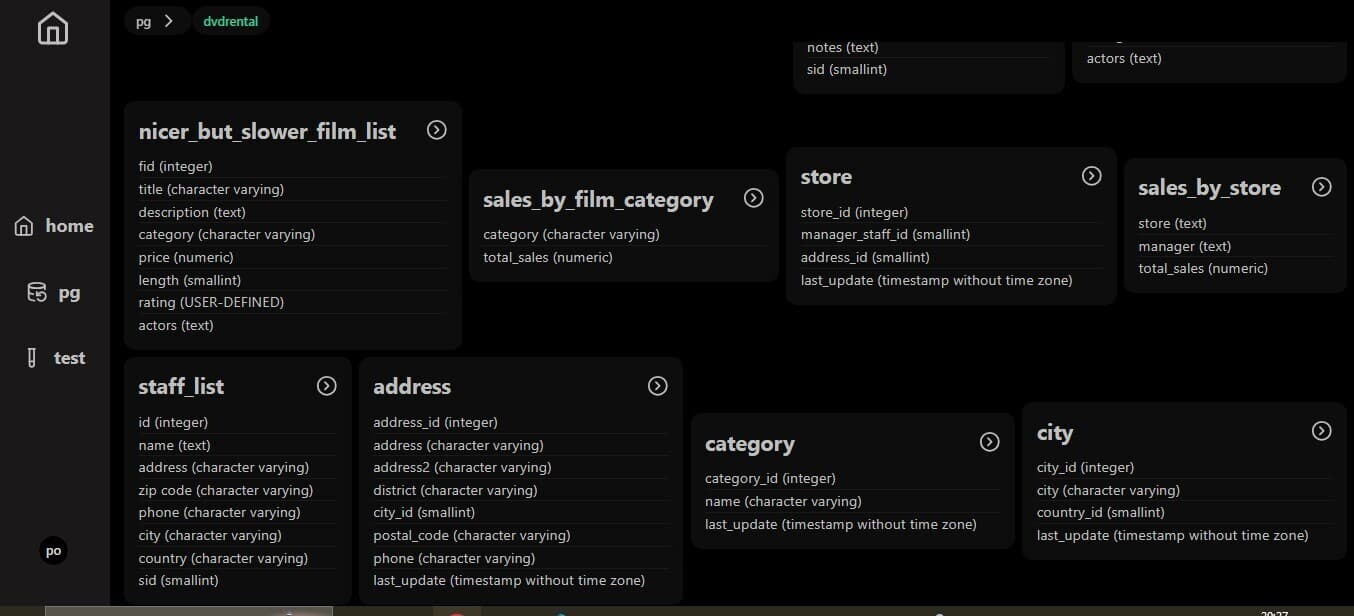

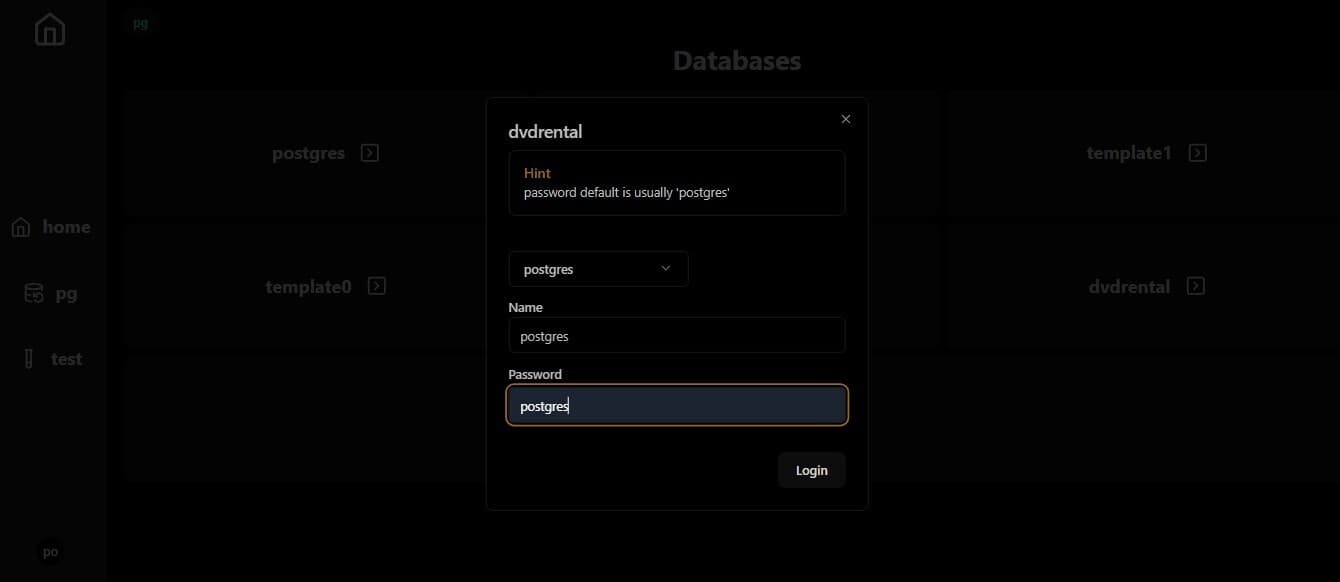

Clicking on one database will prompt you for it's credentials

tsx

1  const query = useSSQ(async (ctx) => {
2    // console.log("This is a one database ", db_name);
3    try {
4      const config = safeDestr<DbAuthProps>(ctx.cookie?.pg_cookie);
5     if (!config || !config?.local_or_remote) {
6       return { rows: null, error: "no config" };
7     }
8     const sql = postgresInstance(config);
9     if (!sql) {
10       return { rows: null, error: "no config" };
11     }
12      const tables = (await sql`
13        SELECT table_name,
14    (SELECT string_agg(column_name, ', ')
15    FROM information_schema.columns
16    WHERE table_schema = t.table_schema
17        AND table_name = t.table_name) AS columns,
18    (SELECT string_agg(data_type, ', ')
19    FROM information_schema.columns
20    WHERE table_schema = t.table_schema
21        AND table_name = t.table_name) AS column_types
22    FROM information_schema.tables t
23  WHERE table_schema = 'public';
24
25        `) as any as [
26        {
27          table_name: string;
28          columns: string;
29          column_types: string;
30        },
31      ];
32      // console.log(" === tables == ", tables[0]);
33      return { tables, error: null };
34    } catch (error: any) {
35      console.log(" === error == ", error.message);
36      return { tables: null, error: error.message };
37    }
38  },{key:db_name});
39

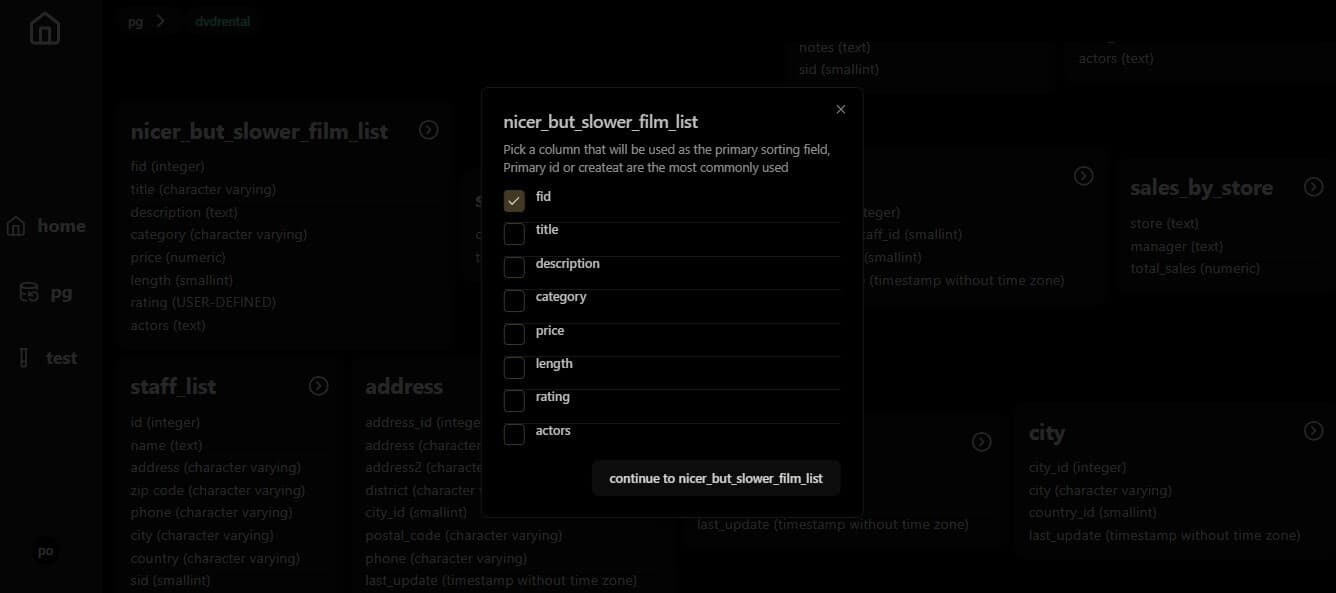

Clicking on one table will prompt you to pick one of the rows as the primary key for sorting

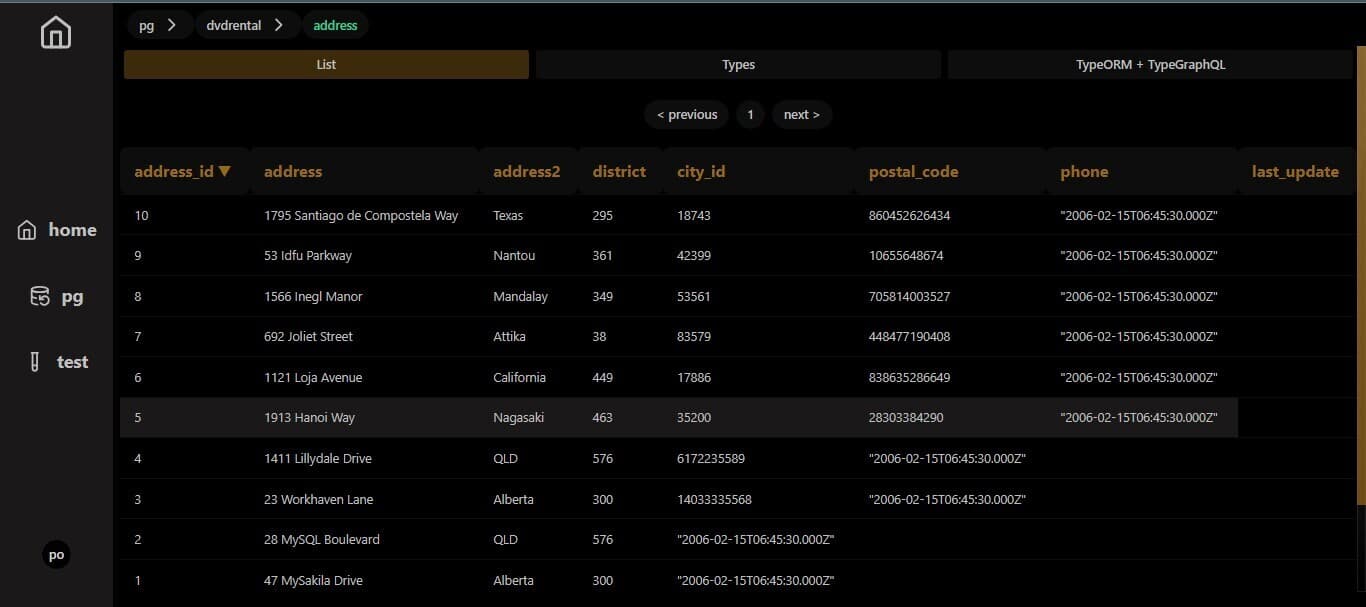

The table view consists of 3 tabs

list We select 10 first rows in this table and will get the next 10 using pagination

tsx

1  const query = useSSQ(
2    async (ctx) => {
3      try {
4        const offset = (table_page - 1) * 10;
5        const config = safeDestr<DbAuthProps>(ctx.cookie?.pg_cookie);
6        if (!config || !config?.local_or_remote) {
7          return { rows: null, error: "no config" };
8        }
9        const sql = postgresInstance(config);
10        if (!sql) {
11          return { rows: null, error: "no config" };
12        }
13      const rows = (await sql`
14      SELECT * from ${sql(db_table)}
15      ORDER BY ${sql(db_primary_column)}
16      OFFSET ${offset}
17      LIMIT 10`) as any as [{ [key: string]: any }];
18
19        return { rows, error: null };
20      } catch (error: any) {
21        console.log(
22          " === useSSQ OneTableRowsOffsetPages error == ",
23          error.message,
24        );
25        return { rows: null, error: error.message };
26      }
27    },
28    { key: `${db_name}/${db_table}` },
29  );

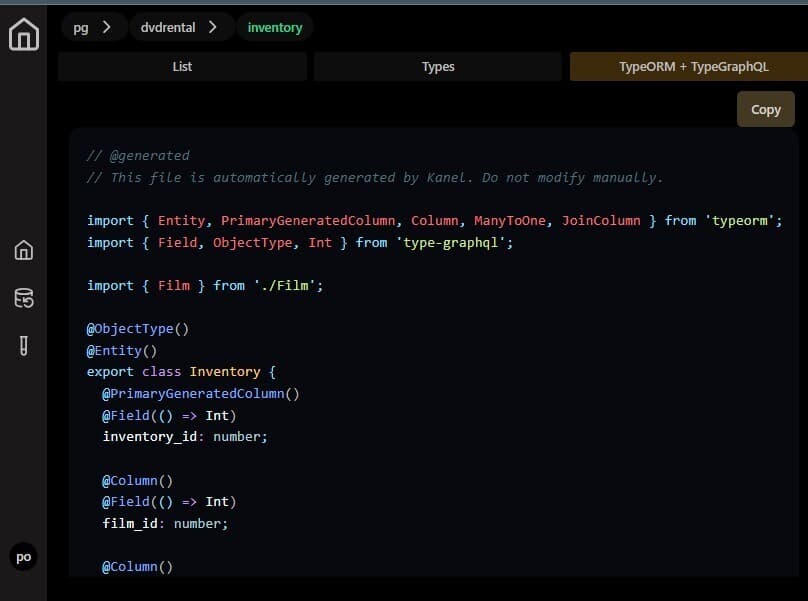

types This part is powered by kanel to generate the types and Shikiji to style the output

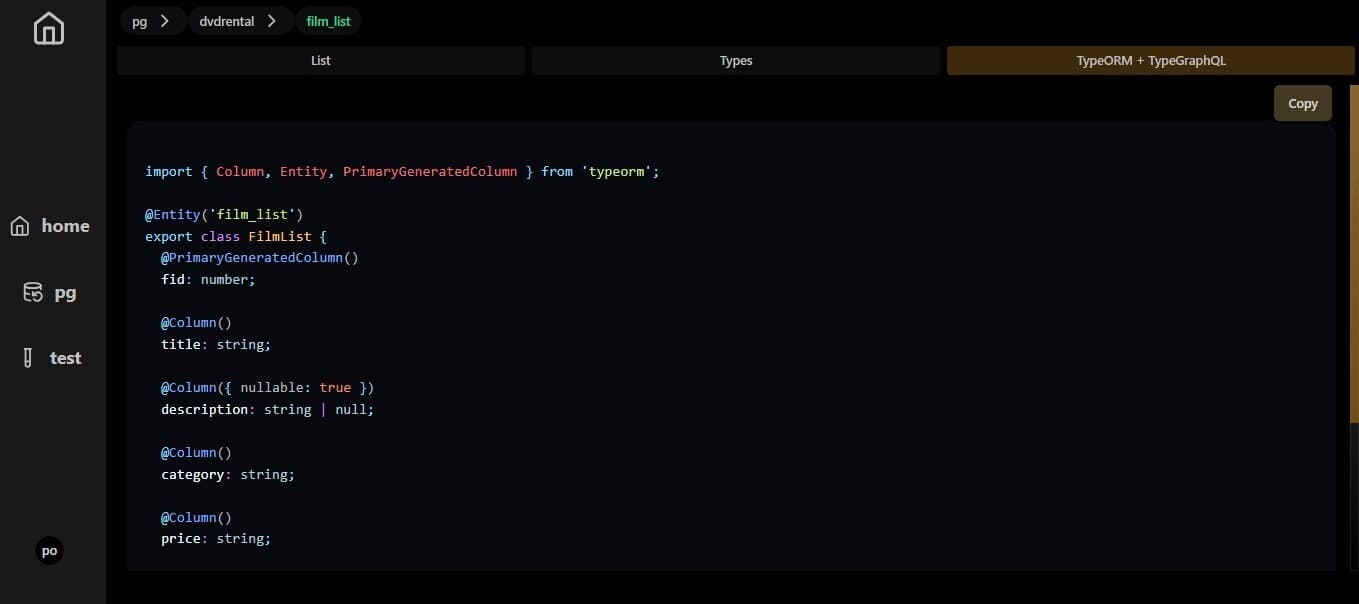

TypeORM + TypeGraphQl class

This part is powered by Gemini AI to generate TypeORM and TypeGraphQl classes from our generated typescript interfaces

Some notable utilities i used include

a script that reads the type files and concats all the imports inside it together in one

typescript

1import fs from "fs";
2import fsp from "fs/promises";
3import path from "path";
4
5
6export async function getTextFromFileWithImports(
7  filePath: string,
8  currentText: string,
9  dbName: string,
10) {
11  try {
12    let count = 0;
13    // console.log("===== file path ======",filePath);
14    const fileContent = await fsp.readFile(filePath, "utf8");
15    // console.log("===== file content ======",fileContent);
16    const importRegex = /import.*?from ['"](.+?)['"];/g;
17    let match;
18    let updatedText = currentText;
19    if (count === 0) {
20      updatedText += fileContent;
21    }
22
23    while ((match = importRegex.exec(fileContent)) !== null) {
24      count += 1;
25      const importedFilePath = match[1];
26      const absoluteImportedPath = path.resolve(filePath);
27      // console.log("===== absolute path  ======",absoluteImportedPath);
28      const importedFileContent = fs.readFileSync(absoluteImportedPath, "utf8");
29      updatedText += "\n" + importedFileContent;
30      const next_file_path =
31        path.resolve("pg/" +dbName+"/public", importedFilePath) + ".ts";
32      // console.log(" ====== next file path  ======",next_file_path);
33      updatedText =
34        (await getTextFromFileWithImports(next_file_path, updatedText, dbName)) ?? ""; // Make the process recursive
35    }
36    //  console.log("===== count  ======",count);
37    return updatedText;
38  } catch (error) {
39    console.log("====== error in readTextFromFileWithImport === ", error);
40    return;
41  }
42}

A helper to trim out any markdown code blocks that gemini was adding randomnly in it's responses like this ![randoom-gemini code blocks](https://dev-to-uploads.s3.amazonaws.com/uploads/articles/ytwj8m8t1bvrem5ppbnm.png)

typescript

1
2export function trimOutCodeBlock(input: string) {
3  const codeBlockStart = "

typescript"; const codeBlockEnd = "```"; const startIndex = input.indexOf(codeBlockStart); const endIndex = input.indexOf( codeBlockEnd, startIndex + codeBlockStart.length, ); if (startIndex !== -1 && endIndex !== -1) { return ( input.slice(0, startIndex) + input.slice(endIndex + codeBlockEnd.length) ); } else { return input; } }

typescript

1
2
3- A helper for Postgresjs to handle local or remote connections config

ts import postgres from "postgres"; import { RequestContext } from "rakkasjs";

export function postgresInstance(options?: DbAuthProps) { if(!options){ return } if (options?.local_or_remote === "local") { return postgres({ host: options.db_host, user: options.db_user, password: options.db_password, database: options.db_name, idle_timeout: 20, max_lifetime: 60 * 30, }); } return postgres(options.connection_url, { idle_timeout: 20, max_lifetime: 60 * 30, }); }

export interface LocalDBAuthProps { local_or_remote: "local"; db_name: string; db_password: string; db_user: string; db_host: string; } export interface RemoteDBAuthProps { local_or_remote: "remote"; connection_url: string; }

export type DbAuthProps = LocalDBAuthProps | RemoteDBAuthProps;

export function setPGCookie(ctx: RequestContext<unknown>, value: string) { ctx?.setCookie("pg_cookie", value, { sameSite: "strict", httpOnly: false, maxAge: 60 * 60 * 24 * 30, path: "/", }); // console.log( " ============= set pg cookie ============ ", ctx.cookie?.pg_cookie); } export function deletePGCookie(ctx: RequestContext<unknown>) { ctx?.deleteCookie("pg_cookie", { path: "/", }); // console.log( " ============= deleted pg cookie ============ ", ctx.cookie?.pg_cookie); }
```

And with that we have a basic PostgresSQL GUI hat generates TypeORM and TypeGraphQl classes for us , I feel like this will come in handy soon 😏 . feel free to play with it and discover new patterns

Next step is using something like wails or tauri or electron to package it into a binary for better DX

Full code
